Plantronics W720 & CS520 Resource Page

Wireless Headsets for the Radio Amateur

Ham's Resource Page                             Back to K5PA Main Page                            Last Update On: 6/7/2022

UNTETHER YOUR MEMORIES!, Remotely Operate Your Icom Message Memories  January 2021, PDF Link

CQ Magazine, January 2021 Issue, Written by Gene Hinkle, K5PA & Jim Millner, WB2REM



UNTETHER YOUR MEMORIES!, Wireless Relay User Manuals  Newest, PDF Link

Reference Manual Created by Gene, K5PA



BEYOND UNTETHERED! Operate Your Station, Cellphone, and Remote Simultaneously with a Wireless Headset  (PDF file) Newest

CQ Magazine, October 2018 Issue, Written by Jim Millner, WB2REM & Gene Hinkle, K5PA



Go UNTETHERED! Operate Your Station with a Wireless Headset  (PDF file)

CQ Magazine, September 2017 Issue, Written by Jim Millner, WB2REM & Gene Hinkle, K5PA



The JOY of Being an Untethered Ham Operator  [Newest, PDF Link]

Plantronics W720 wireless headset & More

Presentation to the LARA Virtual Club Meeting, Feb. 25, 2021

Gene, K5PA, and Tom, KB5RF



Substitution Part Numbers for Obsolescent Vendors Newest, PDF Link

Alternate P/N for Vendors No Longer in Business



Foster 8-pin to RJ-45 Breakout Board Connections Newest, PDF Link

Easy Breakout Board for Microphone Connections



____________________________________________________________________________________________



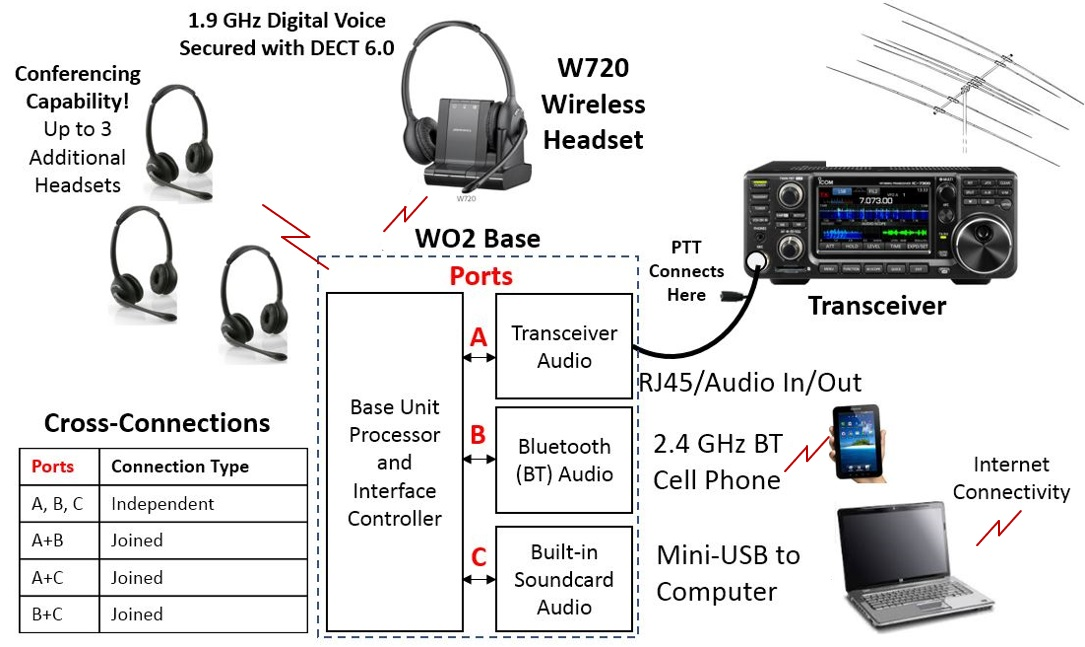

Note: The W720 Base Unit Uses the Same Radio Connections Shown Below for the CS520, They are interchangeable but the W720 provides much more flexibility as described in these 2 documents:



   #1  CS520 & W720 Cable Adapter Catalog Rev-20 for Various Ham Transceivers

      (NEW 7/3/2020 PDF file)



   #2  CS520 & W720 Part Numbers with Photographs & Sources  ((PDF file)

RF Chokes for RFI Remediation - Tech Note   (NEW 6/27/2020 PDF file)

Wireless Remote Control User Manual  (PDF file) (UPDATED 3/3/2021)

-  You can program the remote for Mode-1, Toggle (PTT), or Mode-2, Push-On/Push-Off, to CONSERVE BATTERY LIFE!

Wireless Push-to-Talk (PTT) Remote Control Wiring Diagram  (PDF file)

Replacing the Headset Battery  (PDF file)

Replacing the Headset Ear Cushion  (PDF file)

CS520 Audio Waveform Latency (Audio Path Time Delay) Measurements  (PDF file)

Plantronics® CS520 User Manual  (Complete User Manual, PDF file, 1.6MBytes)

  -  Headset Controls(Page 15-16 Excerpts)

  -  Base Unit Controls, Including the Auto Answer Switch (Autoconnect)(Page 17-18 Excerpts)

  -  Conferencing Up to 3 Headsets(Page 19 Excerpt)



Plantronics® W720 User Guide (Complete User Manual, PDF file, 2.7MBytes)

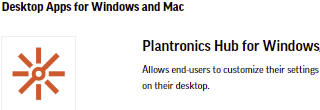

Plantronics® Downloads and Apps (Link to Plantronics® Hub for Windows/Mac)

click picture

DECT 6.0 Wikipedia Background Information    A Must Read !       (Web Link)

DECT Security White Paper  (PDF file)

DECT 6.0 for the USA Marketplace

    DECT 6.0 technology (versus DECT) was developed for the USA market and meets FCC

    regulatory requirements. Please read the DECT 6.0 Wikipedia Link above for

    clarifications of how this technology has evolved and how it relates to usage

    in other countries.



    This resource page applys to DECT 6.0 for the USA. Validity to pure DECT

    technology for other countries is open to experimentation by the amatuer operator.



    Non-USA Amateurs should refer to the CS520 Part Numbers with Photographs and

    Sources document for some additional insight.



Do It Yourself (DIY) Projects

#1 How to Connect CS520 to Cell Phones or Tablets  (PDF file)

#2 How to Connect to 1/8" Phone Plugs  (PDF file)

       Connections to Computers, Sound Cards, ORB Control Device (RemoteHams)

#3 Plantronics W720 or CS520  to Yaesu FT-991 or FT-857D Interfaces  (PDF file)

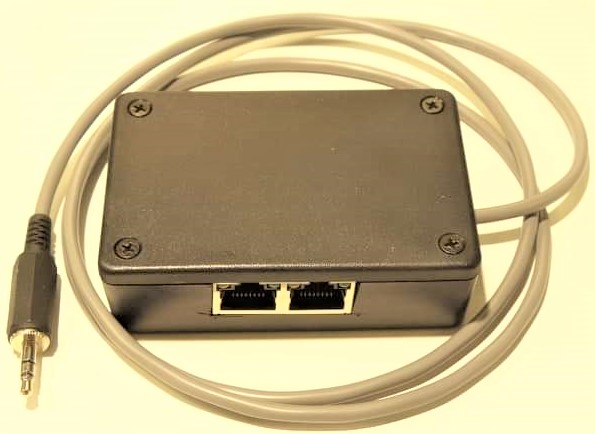

       Example of using Dual RJ45 Breakout Circuit Cards to Interface RJ45-Style Microphone Connections

Photo and Build credit Chris, KE8INO

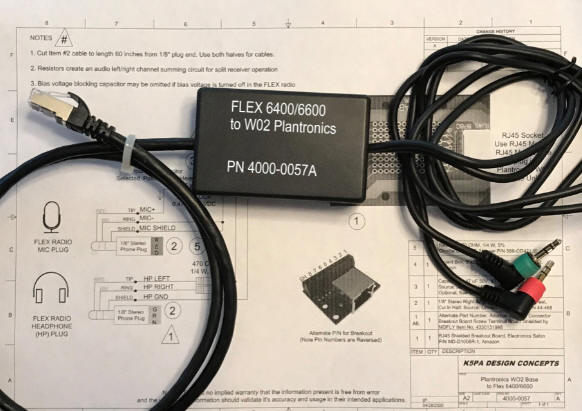

#4 FLEX 6400/6600 Radio and/or Maestro to Plantronics W720 or CS520 Wireless Headset  (PDF file)

       Example of using Single RJ45 Breakout Circuit Card to Interface Radio 1/8" Phone Jack Mic and Headphone Connections

More to come...
